SP50-5B-A Pneumatic Stapling Pliers

SP50-5B-A

SP50-5B-A Pneumatic Stapling Pliers
SP50-5B-A Pneumatic Stapling Pliers
SP50-5B-A Pneumatic Stapling Pliers
SP50-5B-A Pneumatic Stapling Pliers
LEARN MORE

FEATURES

  • Powerful Shuttle Blade Provides Pre-Compression Prior to and During The Stapling Operating - Giving A Strong, Tight Closure Without Breaking The Corrugated Surface
  • 6” x 1” High Throat Allows Flexibility of Staple Placement and Limits Interference from Obstacles Such As Box Flanges
  • C Anvils (CL or CR Available for Sealing Partial Overlap Cartons
  • Penetrates and Securely Fastens up to 2 Thicknesses of Double - Wall:
    2x AB Flute or 4x C Flute Boards
    (A Flute = 3/16” or 4.8 mm Thick)
    (B Flute = 1/8” or 3.2 mm Thick)
    (C Flute = 5/32” or 4.0 mm Thick)

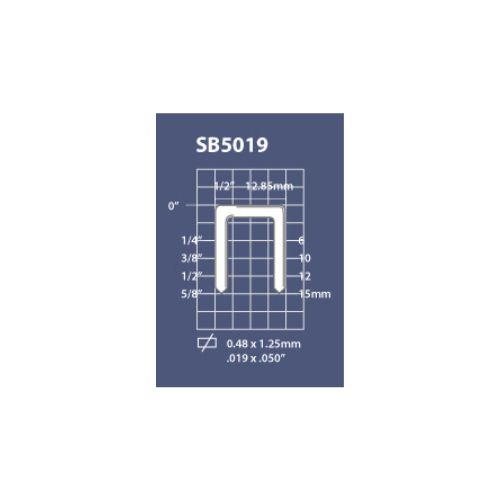

FASTENERS

  • Staple Type: SB 5019
  • Similar to: Bostitch SB 5019
  • Crown: 12.85 mm 1/2”
  • Shank Diameter: 0.48 x 1.25 mm .019 x .050”
  • Leg Length: 6, 10, 12, 15 mm 1/4, 3/8, 1/2, 5/8”
  • Load Capacity: 108

TOOL SPECIFICATION

SP50-5B-A Pneumatic Stapling Pliers
