AW050K 17mm Super Stubby Air Impact Wrench

Air Stubby Impact Guns with Special Embedded Tie-in Design – COMING SOON!

Instead of buying two or more power tools in different square drives, AW050K is flexible for users to change and directly insert 1/2”, 3/8” anvils, and regular stubby impact sockets. It could be applied to automotive, motorcycle, agriculture machines, and other industries. The air impact tool includes a one-hand operation for forward & reverse and 3 positions for each side so that users are able to operate it faster and more precisely. With lightweight features and the shortest length design (1.35kg/86mm), this air impact gun could bring a more fluent as well as efficient user experience and is suitable for various industrial purposes.

--APACH HAS MADE OUR TOOL ONE FOR ALL--

Absolutely Handy

Powerful Torque

Assist Budget Saving

Certified & Quality Proved

High Efficiency

Operators Would Only Require One AW050K instead of Buying Two (or More) Tools

AW050K 1/2” & 3/8” anvil replaceable super stubby air impact wrench is a patented tool provided by APACH Tools, a prestige pneumatic tool manufacturer in Taiwan.
This latest air impact tool, with a special embedded tie-in design, could connect with 1/2”, 3/8” anvils and traditional stubby impact sockets when users have to purchase and bring two (or more) traditional impact wrenches. Now, APACH’s new design could not only help users save some budgets but also decrease tools' heavy loading. The variety of applications and service life makes this tool irreplaceable by many knockoffs distributed in the market.

1. Jumbo Hammer mechanism is applied to this impact gun, for its stability, long life, lightweight, and durability.
2. Support for single-handed operation, forward/reverse rotation, and 3-stage setting to adjust speed and torque.

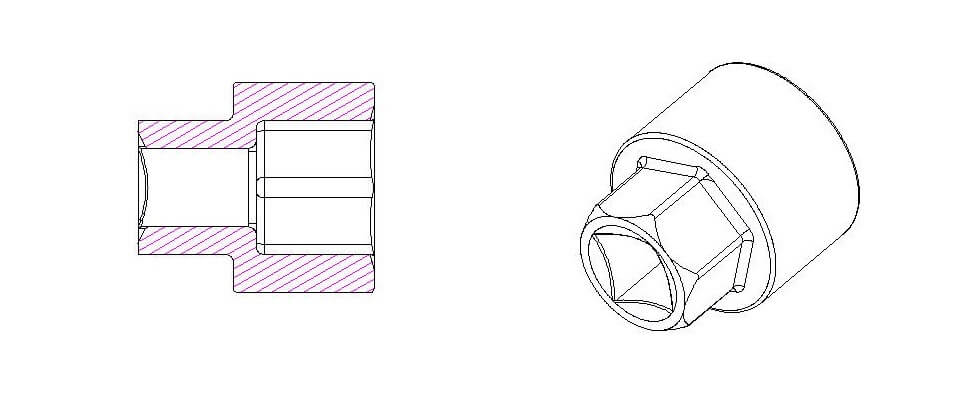

3. Users could directly insert common 3/8” stubby impact sockets into the tools. No adaptors and anvils are needed, so users could just simply get regular sockets at their side/market easily. Below are schematic diagrams for common stubby impact socket 6-point hex shape for your reference.

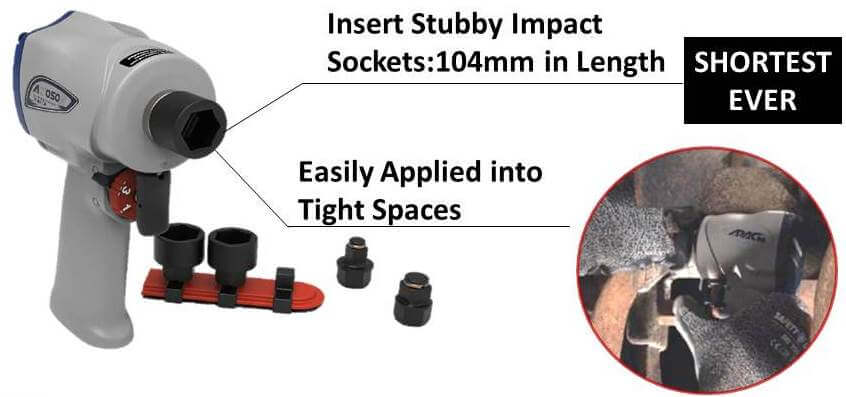

4. Connected with stubby impact sockets, the tool is 104mm only in length that can be applied to tight spaces when a standard/traditional impact wrench is too long to reach in such a cramped environment. Users can attach with common stubby impact sockets for convenient use at a minimal operating distance.

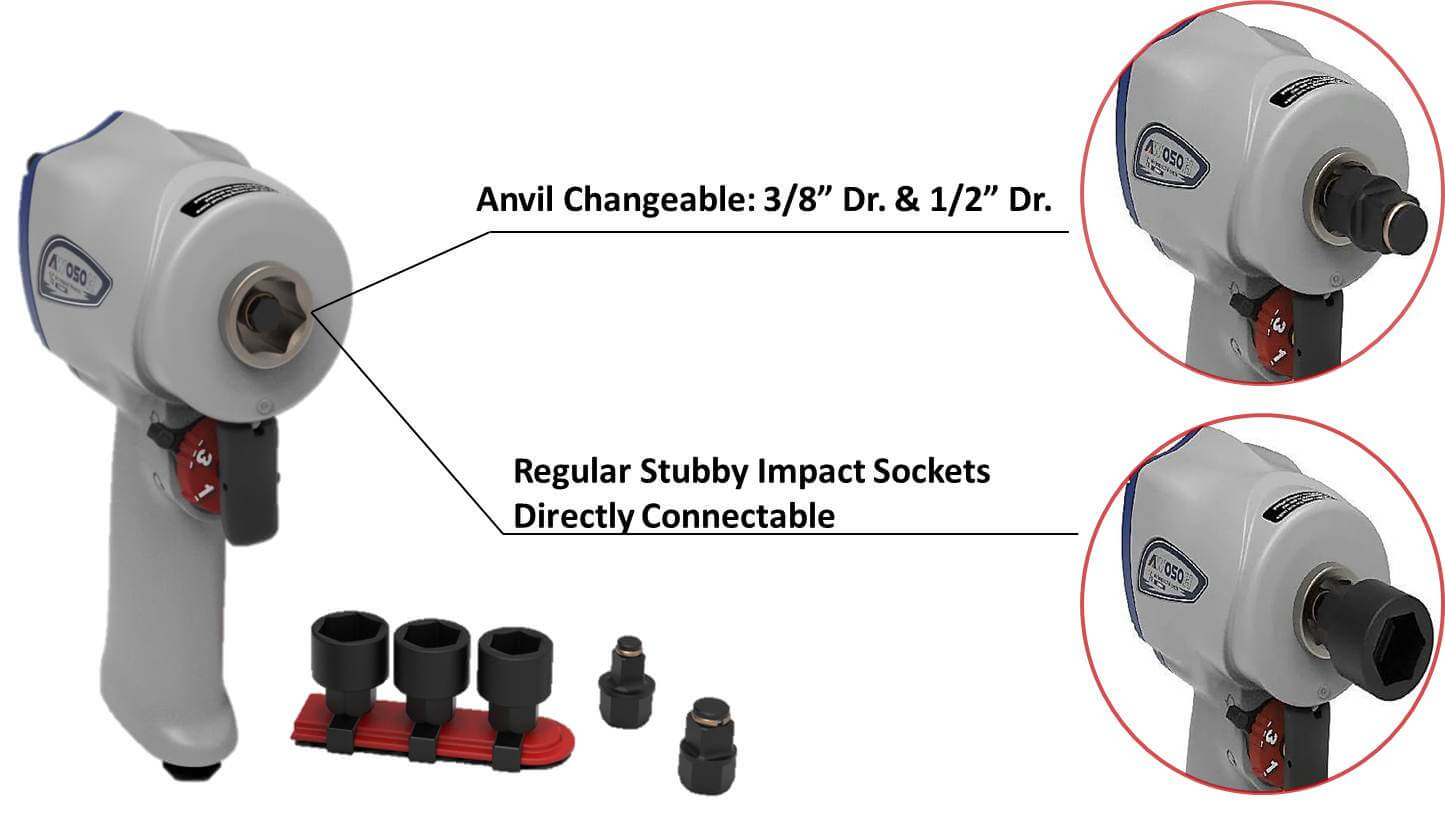

5. Anvil Patent in 5 countries, including Taiwan, the United States, Germany, Japan, and China, which features one AW050K realizes multiple functions and usually needs 2 (or more) tools. The users can use AW050K as either 3/8" or 1/2" with 3/8" Dr. & 1/2" Dr. anvil adaptors.
6. The wrench is short and tiny but with sufficient torque power. (MAX 813N.m)
7. Breakaway torque could be over 900ft-lbs (1220Nm).

AW050K industrial air impact wrench would have its first debut in Automechanika Frankfurt in 2022. It is highly welcome to come to our booth F73 at Hall9.0. The following short video may give you a clear insight into the features of AW050K:

• Mechanism： Jumbo Hammer
• Highest durable Japanese steel Anvil
• Handle exhaust
• One hand operation for forwarding & Reverse; 3 positions for each side
• Replaceable anvil design for common stubby sockets or change to the traditional anvil of 3/8” and 1/2”
• Short Length: Only 3.3” from front to the rear allows for easy access in cramped spaces
• Die casting of housing
• Powerful torque with Low noise
• Components with durable and heavy-duty materials
